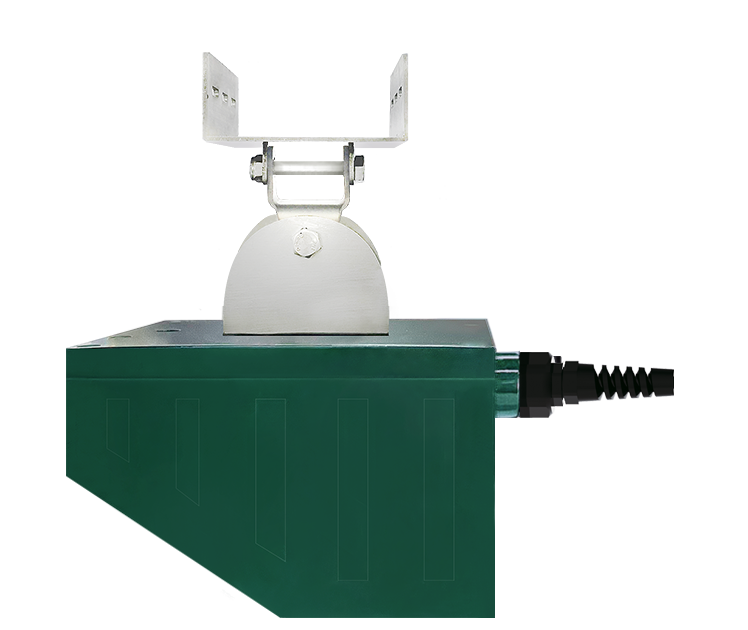

PWFL432-P(ABS)

Summary indicators

· Non-contact measurement, no wear, no pollution

· Array antenna, small size, light weight, easy installation

· Built-in Angle measuring function

· Free from corrosion, foam, etc

· Not affected by changes in atmospheric water vapor, temperature and pressure

Summary indicators

· Range of water level: 12m

· Water level accuracy：±2mm

· Operating temperature: - 40 ℃ ~ 70 ℃

· Storage temperature: - 20 ℃ ~ 60 ℃

· Field protection grade: IP68

· Operating frequency of water level radar：60GHz

· Power supply current: ≤60mA (work), ≤1mA(sleep)

· Electrical source: 5.5~30V DC

· Communications: RS485

The velocity measurement

· Speed range: 0.02~21m/s

· Current radar beam angle:12°×12°

· Speed accuracy: 8.8mm/s;

· Resolution: plus or minus 1mm/s

· Direction discrimination: upstream

·Current radar transmission frequency: 24GHz

· distance to water surface: 0.1~12m
